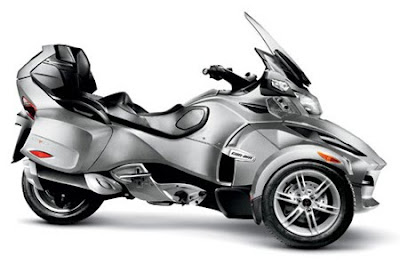

Can-Am Spyder RT Roadster, 2010

Can-Am Spyder RT Roadster, 2010



The Can-Am Spyder RT Roadster. Riding Reinvented.
With a host of standard features, the Can-Am Spyder RT roadster delivers enough comfort
and convenience for long, extended escapes - because true freedom is never having to stop.

2010 Can-Am Spyder RT Roadster - North American Specifications
North America MSRP: starting at $20,999 USD

ROTAX Engine
Manufacturer BRP-Rotax
Type 991 V-Twin EFI
Displacement 998cc (60.90 cu. in.)
Bore 97 mm (3.82 in.)
Stroke 68 mm (2.68 in.)
Cylinder 2
Valves per cylinder DOHC 4
Max output 100 hp @ 7500 RPM (71 kW @ 7500 RPM)
Max torque 80 lb.-ft. @ 5500 RPM (104 Nm @ 5500 RPM)
Compression ratio 12.2:1
Ignition type Electronic ignition with dual output coil
Lubrication 5W40 Semi-Synthetic oil (summer grade)
Exhaust system 2-into-1 with catalytic converter
Cooling Liquid-cooled
Injection Multi-point EFI with 51 mm-diameter throttle bodies

Drive Train
Gear box 5-Speed manual (SM5) with remote electronic reverse interlock
5-Speed semi-automatic (SE5) with remote electronic reverse interlock
(RT Audio & Convenience and RT-S models only)
Final drive 28/79 ratio final drive with carbon fibre-reinforced drive belt
Clutch Wet, multi-plate, manual operation through a hydraulic piston

Electric Equi pment
Magneto 650 Watts
Starter Electric
Battery Sealed maintenance-free, 12V, 21 Amp

Geometry
Front suspension Double A-Arm with anti-roll bar
Front suspension travel 5.94 in. (151 mm) gas shocks with 5-position cam adjustment
Rear suspension Swing-arm with monoshock
Rear suspension travel 5.71 in. (145 mm) with pneumatic adjustable preload (RT and RT Audio & Convenience models) 5.71 in. (145 mm) with electro-pneumatic remote adjustable preload (RT-S model only)
Chassis type SST Spyder (Surrounding Spar Technology)
Steering DPS (Dynamic Power Steering)

Tires & Wheels
Front tire KR21 165/65R14
Front nominal pressure 13-17 psi (90-117 kPa)
Rear tire KR21 225/50R15
Rear nominal pressure 26-30 psi (179-207 kPa)
Wheel size, front Aluminum 14x5 (355x127)
Metallic Silver (RT and RT Audio & Convenience models)
Smoked Chrome (RT-S model only)
Wheel size, rear Aluminum 15x7 (381x178)
Metallic Silver

Brakes
Type Foot-actuated, fully integrated hydraulic 3-wheel braking system
Front braking system 4 piston calipers with a diameter of 31.75 mm (1.25 in.) each (250 mm x 6 mm) discs
Rear braking system Single-piston sliding pins caliper with a diameter of 38.1 mm (1.500 in.) (250 mm x 6 mm) disc
EBD Electronic Brake Distribution
ABS Anti-lock Braking System
Parking brake Electro-mechanical park brake system with actuator on the rear caliper

Safety & Security
VSS Vehicle Stability System
ABS Anti-lock Braking System
TCS Traction Control System
SCS Stability Control System with roll-over mitigation
DPS Dynamic Power Steering
DESS Digitally Encoded Security System
Vehicle Dimensions & Weights
Dry weight 929 lb. (421 kg)
Front max load capacity 30 lb. (15.9 kg)
Total vehicle load allowed 525 lb. (240 kg)
Trailer towing capacity 400 lb. (181.4 kg)
Fuel capacity 6.6 US gal. (25 l)
Oil capacity 0.9 US gal. (3.5 l)
Coolant capacity 0.85 US gal. (3.2 l)
GVWR 1,188 lb. (540 kg)
Ground clearance 4.5 in. (115 mm)
Vehicle overall height 59.4 in. (1,510 mm)
Vehicle overall length 105 in. (2,667 mm)
Vehicle overall width 62.3 in. (1,582 mm)
Seat (top) height 30.7 in. (780 mm)
Wheel base 67.2 in. (1,708 mm)
Wheel track, front 54.5 in. (1,384 mm)
Type of gas Unleaded, 91 octane-minimum

Vehicle Storage Capacity
Total 40.95 US gal. (155 l)
Front 15.32 US gal. (58 l)
Glove box 0.53 US gal. (2 l)
Left cargo 6.87 US gal. (26 l)
Right cargo 6.87 US gal. (26 l)
Rear cargo 11.36 US gal. (43 l)

Color Choices
Full Moon Silver (RT and RT Audio & Convenience models only)
Orbital Blue (RT Audio & Convenience and RT-S models only)
Timeless Black (RT-S model only)
