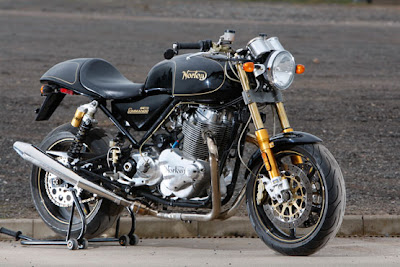

Norton Commando 961 SE, 2011



Norton Commando 961 SE, 2011

Specifications
Frame
  • - Frame: Steel tubular with integral oil tank
  • - Swing arm: Twin-sided steel construction
  • - Wheelbase: 1420mm (55.9 in)
  • - Rake: 24.5 degrees
  • - Trail: 99mm (3.9 in)
  • - Front suspension: 43mm Ohlins RWU
  • - Rear suspension: Ohlins reservoir-style twin shocks
  • - Front wheel: 3.50 x 17” BST Carbon Fibre
  • - Rear wheel: 5.0 x 17” BST Carbon Fibre
  • - Front tyre: 120/70 x 17”
  • - Rear tyre: 180/55 x 17”
  • - Front wheel travel: 115mm (4.53 in)
  • - Rear wheel travel: 100mm (3.94 in)
Brakes & Hydraulics
  • - Front brakes: Full Brembo system, twin Brembo 320mm semi-floating hi
  • carbon stainless steel discs, Brembo 4 piston “Gold Line” axial callipers
  • - Rear brakes: Full Brembo system, single Brembo 220mm disc, Brembo 2 piston “Gold Line” calliper
  • - Brembo “Gold Line” front brake master cylinder
  • - Brembo “Gold Line” hydraulic clutch master cylinder
  • - Brembo rear brake master cylinder
  • - Brembo hydraulic clutch actuation slave cylinder
Transmission
  • - Gear box: constant mesh 5 speed
  • - Final drive: 525 “O” ring chain
  • - Clutch: Wet multi-plate hydraulic lifter
  • - Electric start Power Assembly
  • - Engine type: New engine developed by Norton and F1 engine builders, MCT of Oxfordshire, England. Parallel twin with push-rod valve actuation, dry sump, 3 bearing crank and balancer shaft.
  • - Displacement: 961cc
  • - Cooling system: Air
  • - Valve actuation: Push rod, 2 valves per cylinder
  • - Bore x stroke: 88mm x 79mm
  • - Compression ratio: 10.1:1- Power: 80PS @ 6500RPM
  • - Torque: 90Nm @ 5200RPM
  • - Ignition: Crank fired electronic
  • - Euro 3 compliant with electronic fuel injection and multiple 3 way catalytic converter
Electronics & Controls
  • - Charging system: 300 watt hi-output charging system
  • - Instrumentation: Norton electronic analogue speedo & tachometer
Miscellaneous
  • - Fuel tank capacity: 17 litres (4.5 US gallon)
  • - Dry weight: 188kg (414.5 lbs)
  • - Seat height: 813mm (32 in)
  • - Steering: Fully machined billet yokes, triple clamp lower yokes
  • - Handlebars: Tubular steel in chrome
Carbon Pack
  • - Front mud guard
  • - Chain guard
  • - Rear wheel hugger
  • - Rear number plate hugger
  • - Headlight mounting
  • - Front wheel
  • - Rear wheel
