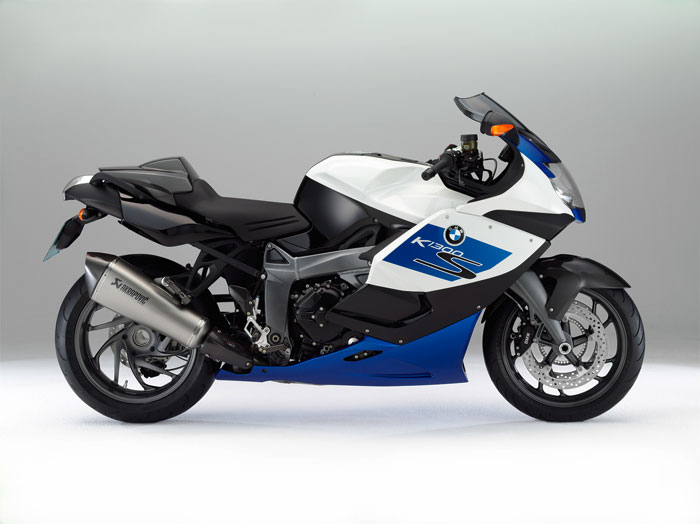

BMW K1300S HP, 2012





• BMW K1300S HP, 2012

American Specifications

US MSRP Price: $20,055 USD

Engine

• Type Water-cooled 4-stroke in-line four-cylinder-engine, four valves per cylinder, two overhead camshafts, dry sump lubrication
• Bore x stroke 80 mm x 64,3 mm
• Capacity 1.293 ccm
• Rated output 129 kW (175 hp) at 9,250 rpm
• Max. torque 140 Nm at 8,250 rpm
• Compression ratio 13,0 : 1
• Mixture control / engine management Electronic intake pipe injection/digital engine management including knock sensor (BMS-K)
• Emission control Closed-loop 3-way catalytic converter, emission standard EU-3
• Performance / fuel consumption
• Maximum speed Over 200 km/h
• Fuel consumption per 100 km at constant 90 km/h 4,7 l
• Fuel consumption per 100 km at constant 120 km/h 5,3 l
• Fuel type Unleaded premium, octane number 98 (RON), automatic knock control permits operation with minimum octane number 95 (RON).

Electrical system

• Alternator three-phase alternator 580 W
• Battery 12 V / 12 Ah, maintenance-free
• Power transmission
• Clutch Multiple-disc clutch in oil bath, hydraulically operated
• Gearbox Constant mesh 6-speed gearbox
• Drive Shaft drive

Chassis / brakes

• Frame Bridge-type frame, cast aluminium, load-bearing engine
• Front wheel location / suspension BMW Motorrad Duolever; central spring strut
• Rear wheel location / suspension Cast aluminium single-sided swing arm with BMW Motorrad Paralever; central spring strut with lever system, spring pre-load adjustable hydraulically (continuously variable) at handwheel, adjustable rebound damping
• Suspension travel front / rear 115 mm / 135 mm
• Wheelbase 1.585 mm
• Castor 104,4 mm
• Steering head angle 60,4°
• Wheels Cast aluminium
• Rim, front 3,50 x 17"
• Rim, rear 6,00 x 17"
• Tyres, front 120/70 ZR 17
• Tyres, rear 190/55 ZR 17
• Brake, front Twin disc, floating brake discs, diameter 320 mm, 4-piston fixed calipers
• Brake, rear Single disc brake, diameter 265 mm, double-piston floating caliper
• ABS Standard equipment: BMW Motorrad Integral ABS (part-integral)

Dimensions

Length 2.182 mm
Width (incl. mirrors) 905 mm
Height (excl. mirrors) 1.221 mm
Seat height, unladen weight 820 mm (low seat: 790 mm)
Inner leg curve, unladen weight 1,810 mm (low seat: 1,750 mm)
Unladen weight, road ready, fully fuelled 1) 254 kg
Dry weight 2) 228 kg
Permitted total weight 460 kg
Payload (with standard equipment) 206 kg
Usable tank volume 19 litres
Reserve approx. 4.0 litres
" Technical data relate to the unladen weight (DIN)
" 1) According to guideline 93/93/EWG with all fluids, fuelled with at least 90% of usable tank volume
" 2) Unladen weight without fluids


Specifications

• Technical Specifications:
• Engine Type: In-line 4-cylinder, DOHC, 16 valve, liquid cooled
• Displacement: 1293 cc
• Output: 175 bhp at 9,250 rpm
• Transmission: 6-speed
• Seat Height: 820 mm
• Optional Seat Height: 790 mm
• Dry Weight: 228 kg (503 lbs)
• Fuel Tank Capacity: 19 l
• Consumption (l/100km at 120km/h): 5.3 l
• Warranty Coverage: 36 months, unlimited kilometres
• Roadside Assistance: 36 months
